DS-200-5W

MAXX-5W – Premium All-in-One Wet & Dry Dental Milling Machine

The MAXX-5W is a next-generation all-in-one dental milling system engineered for precision, versatility, and high performance. Designed for both wet and dry milling, it streamlines workflows and enhances productivity for dental laboratories and clinics alike.

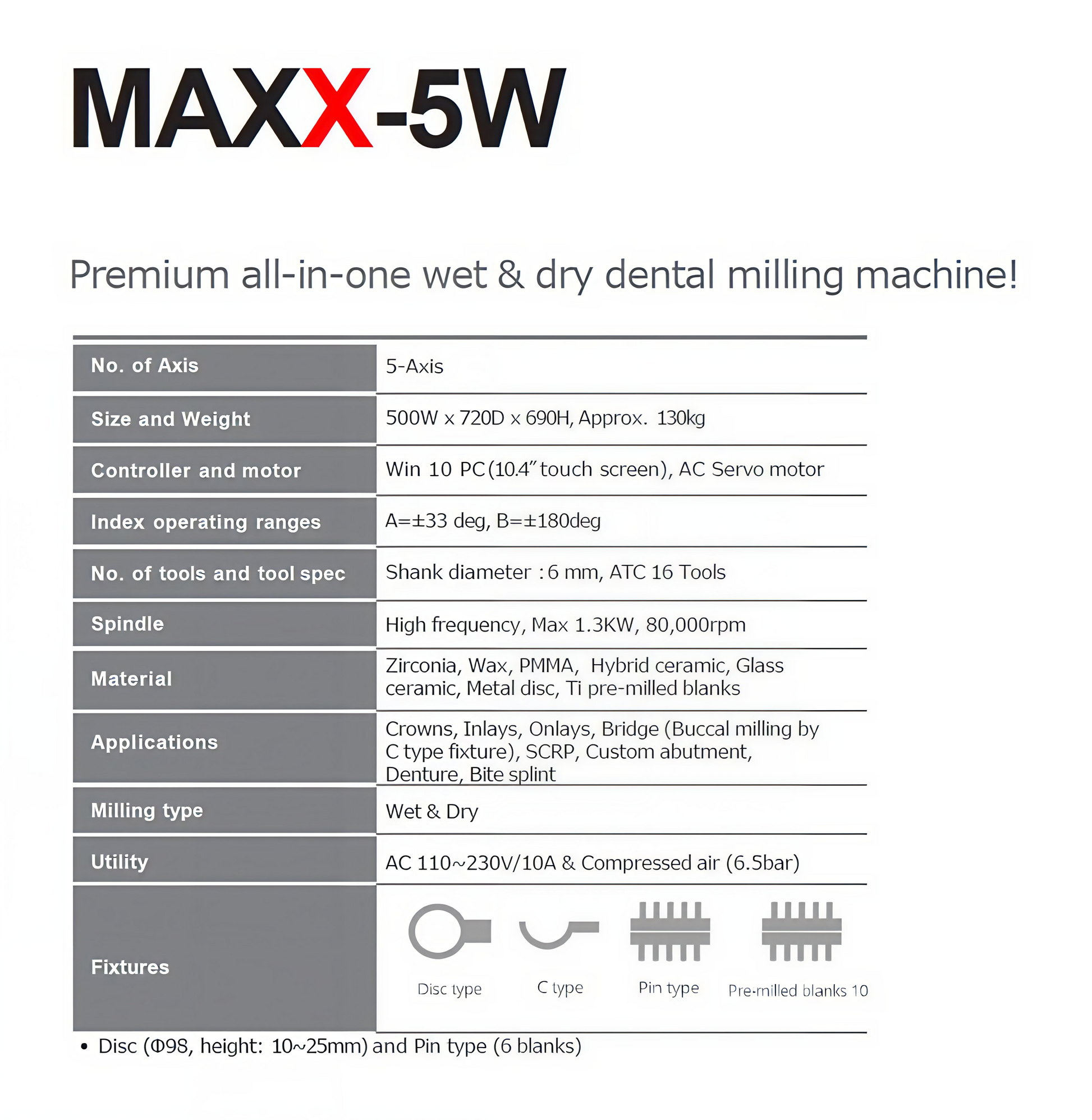

⚙️ Specifications

• No. of Axis: 5-Axis
• Size & Weight: 500W × 720D × 690H mm / Approx. 130 kg
• Controller & Motor: Windows 10 PC (10.4” touch screen), AC Servo Motor
• Index Operating Ranges: A = ±33°, B = ±180°
• Tool System: 6 mm shank diameter, ATC 16 tools
• Spindle: High-frequency spindle, Max 1.3 kW, 80,000 rpm
• Power Supply: AC 110–230V / 10A
• Compressed Air: 6.5 bar

🧱 Compatible Materials

• Zirconia
• Wax
• PMMA
• Hybrid Ceramic
• Glass Ceramic
• Metal Disc
• Titanium Pre-Milled Blanks

🦷 Applications

• Crowns, Inlays & Onlays
• Bridges, SCRP
• Custom Abutments
• Dentures
• Partial Dentures
• Bite Splints

💡 Key Features

• Wet & Dry Milling: Handle a wide range of materials efficiently in a single machine.
• One-Step Milling: Mill custom abutments and suprastructures together — no abutment scan required!
• 5-Axis, 90° Milling: Exceptional accuracy for complex angles and undercuts with advanced A-axis swivel.
• Smart Control: Integrated PC with a 10.4” touchscreen for intuitive and seamless operation.
• Compact Yet Powerful: Combines performance and functionality in a space-saving design ideal for both labs and clinics.

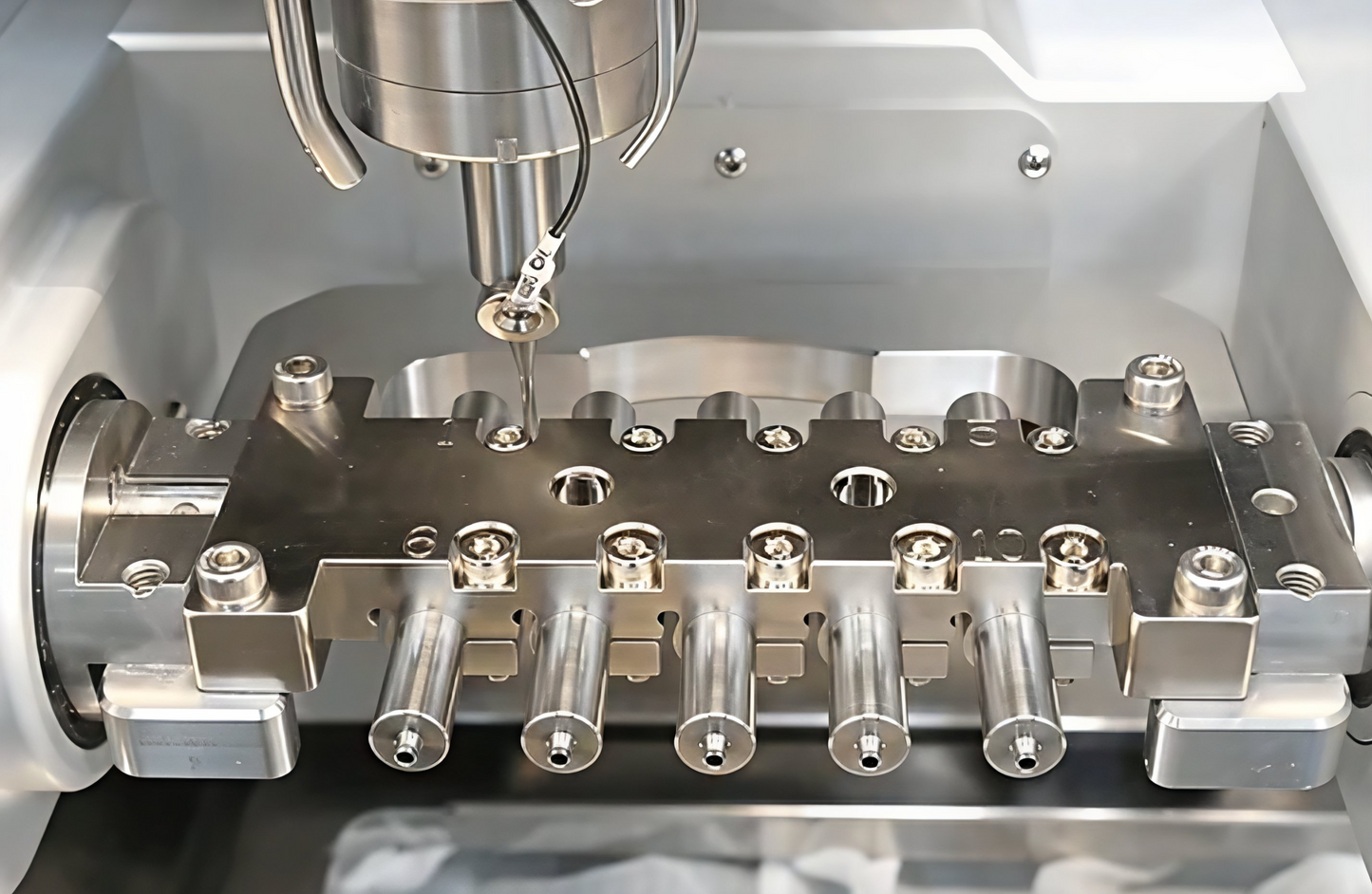

🔩 Fixtures

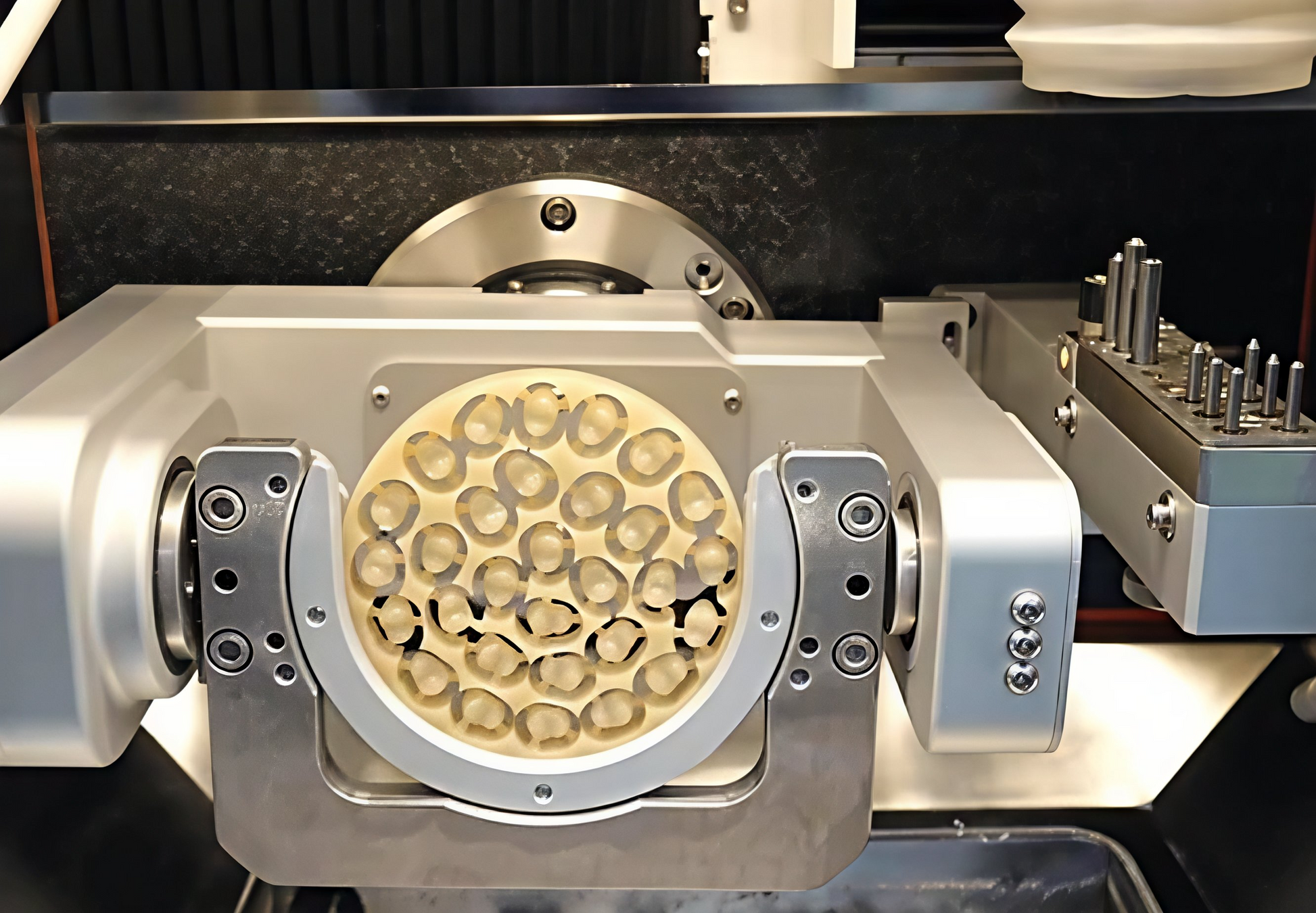

• Disc Type: Ø98 mm (height 10–25 mm)
• C Type: For buccal milling
• Pin Type: 6 blanks
• Pre-Milled Blanks: 10 slots

🌟 Summary

The MAXX-5W redefines the standard of dental milling with its all-in-one design, capable of handling both wet and dry processes. With 5-axis precision, multi-material compatibility, and a fully automated workflow, it delivers outstanding accuracy, efficiency, and reliability — the ultimate solution for modern dental production.
