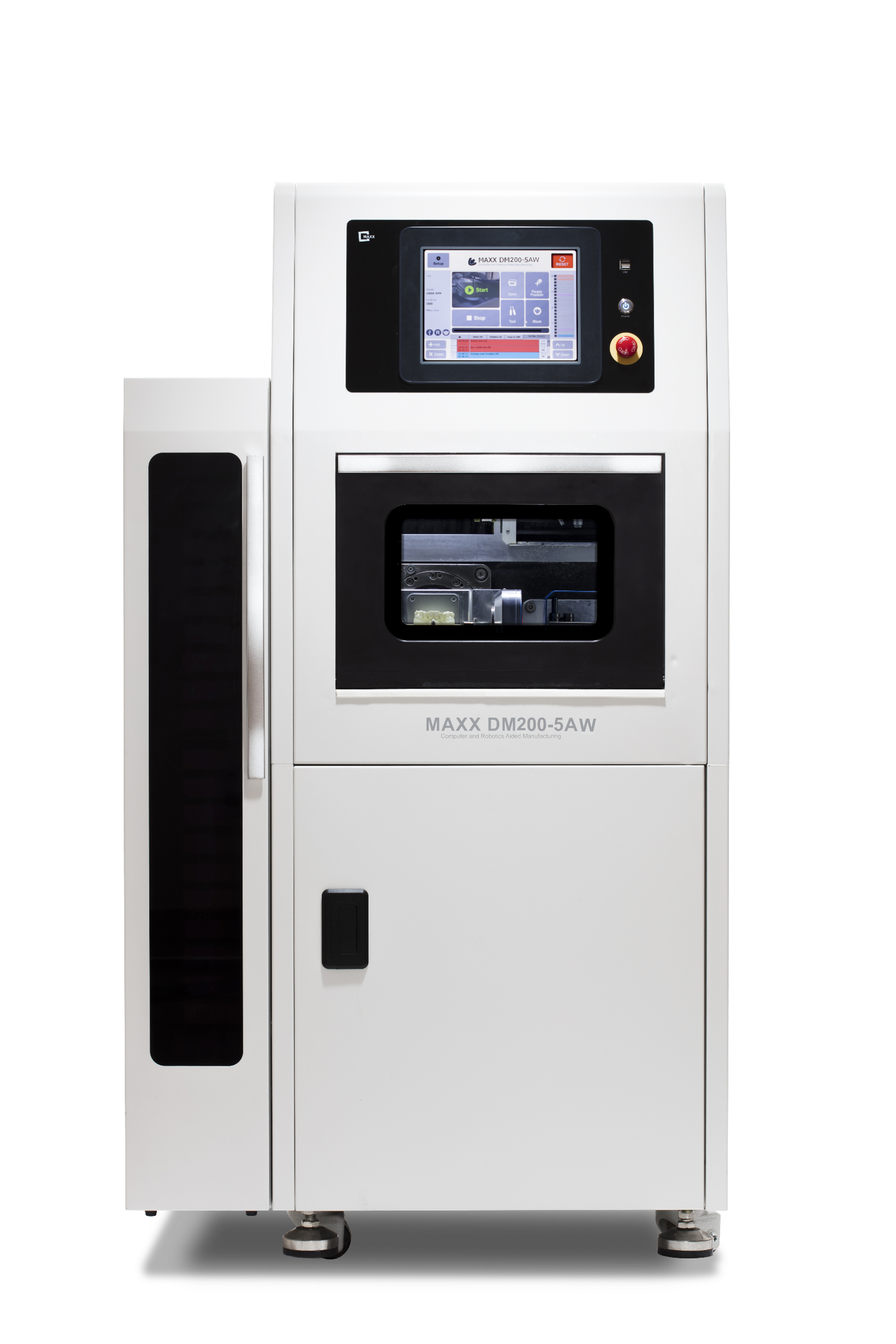

MAXX-5AW – Full Automatic 5-Axis All-in-One Milling System
The MAXX-5AW is a fully automated industrial 5-axis milling machine engineered for mass production and high-precision milling of both soft and hard materials. Equipped with an auto disc loader and powerful AC servo motor, it delivers continuous 24/7 productivity with exceptional accuracy and reliability.
⚙️ Specifications
No. of Axis: 5-Axis
Size & Weight: 870W × 800D × 1520H mm
Controller & Motor: AC Servo Motor
Spindle: High Frequency, Max 2.7 kW / 60,000 rpm
Milling Type: Wet & Dry (All-in-One)
Disc Auto Loader: Up to 18–20 discs
🧱 Compatible Materials
Metal
Ti Pre-Milled Blanks
Zirconia
Wax
PMMA
Hybrid Ceramic
Poly Urethane
🦷 Applications
Crowns & Bridges
Inlays & Onlays
Custom Abutments
Implant Bars & Bridges
Dentures & Bite Splints
Digital Models
SCRP Restorations
💡 Key Features

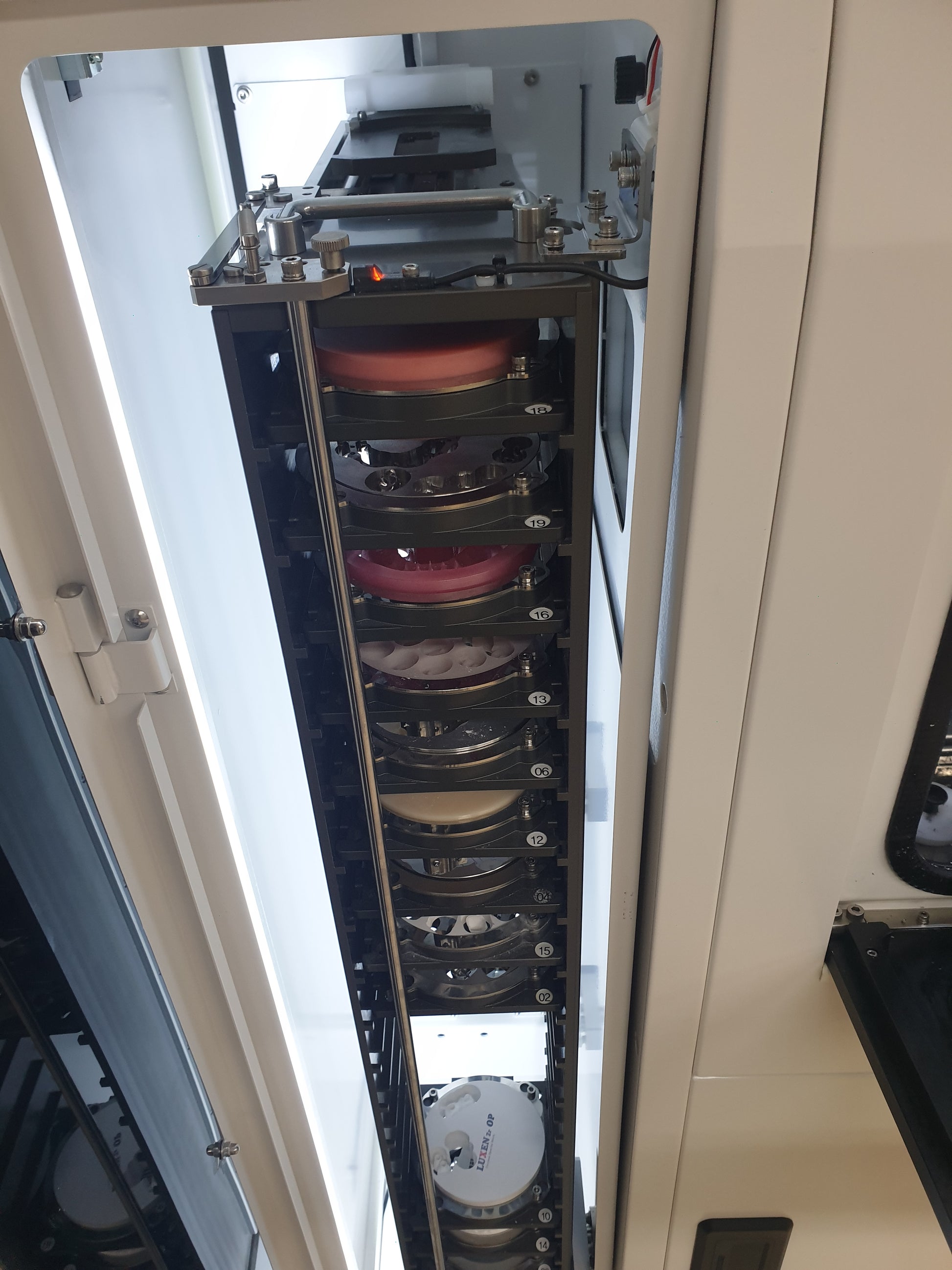

Full Automation: Auto loader system enables continuous milling for up to 20 discs without interruption.
All-in-One Wet & Dry Milling: Switch seamlessly between different materials and workflows in one system.
High Precision & Speed: Less than 15 minutes per crown with ultra-stable 2.7 kW spindle and 60,000 rpm performance.
Granite Base Frame: Provides exceptional stability, vibration reduction, and thermal resistance for consistent results.
24/7 Productivity: Ideal for high-volume production and unattended overnight operation.
Auto Calibration & Tool Detection: Ensures reliable milling quality with minimal supervision.
MAXX LINK Software: Manage, monitor, and receive remote service or training easily through the integrated system.

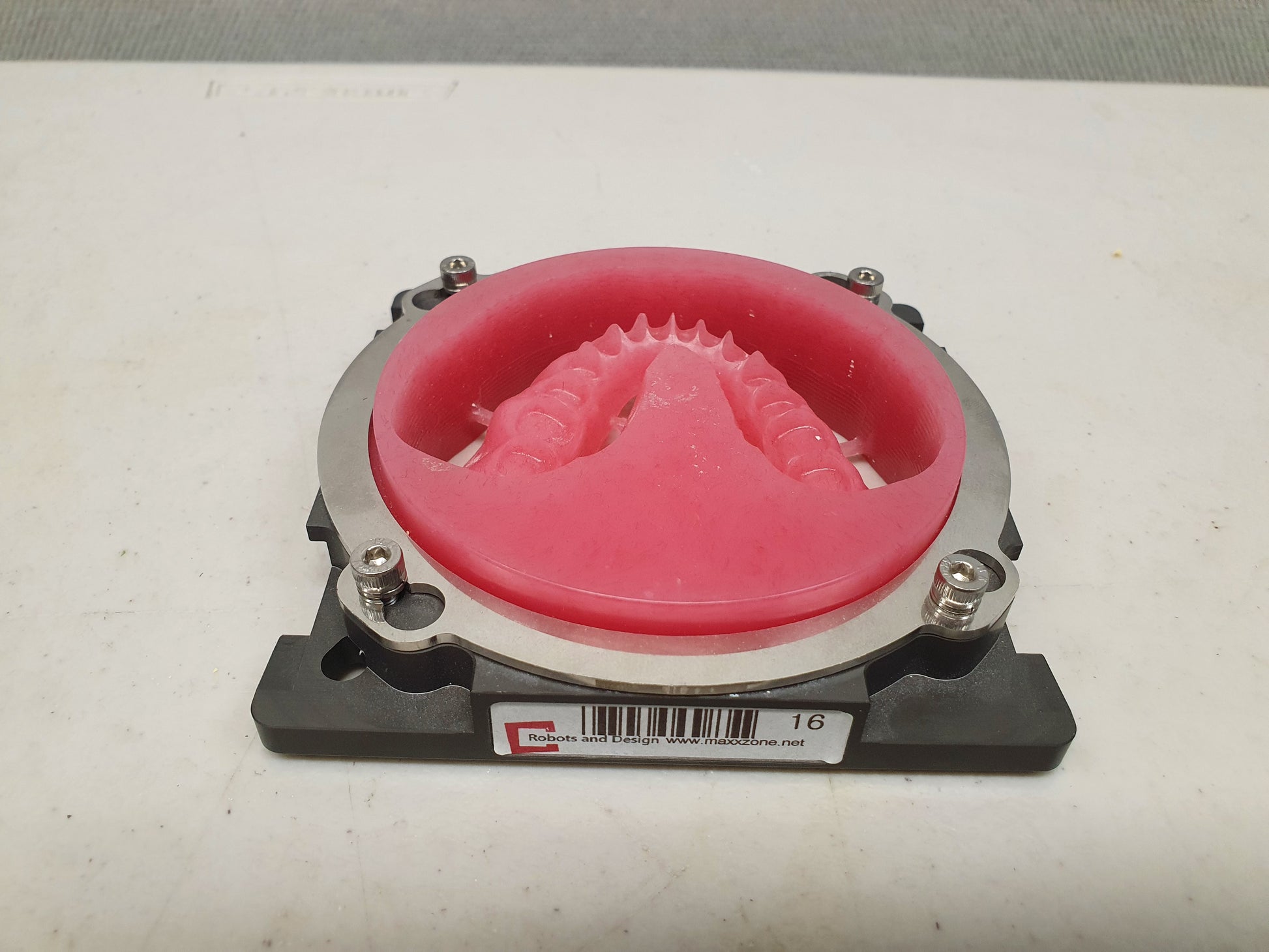

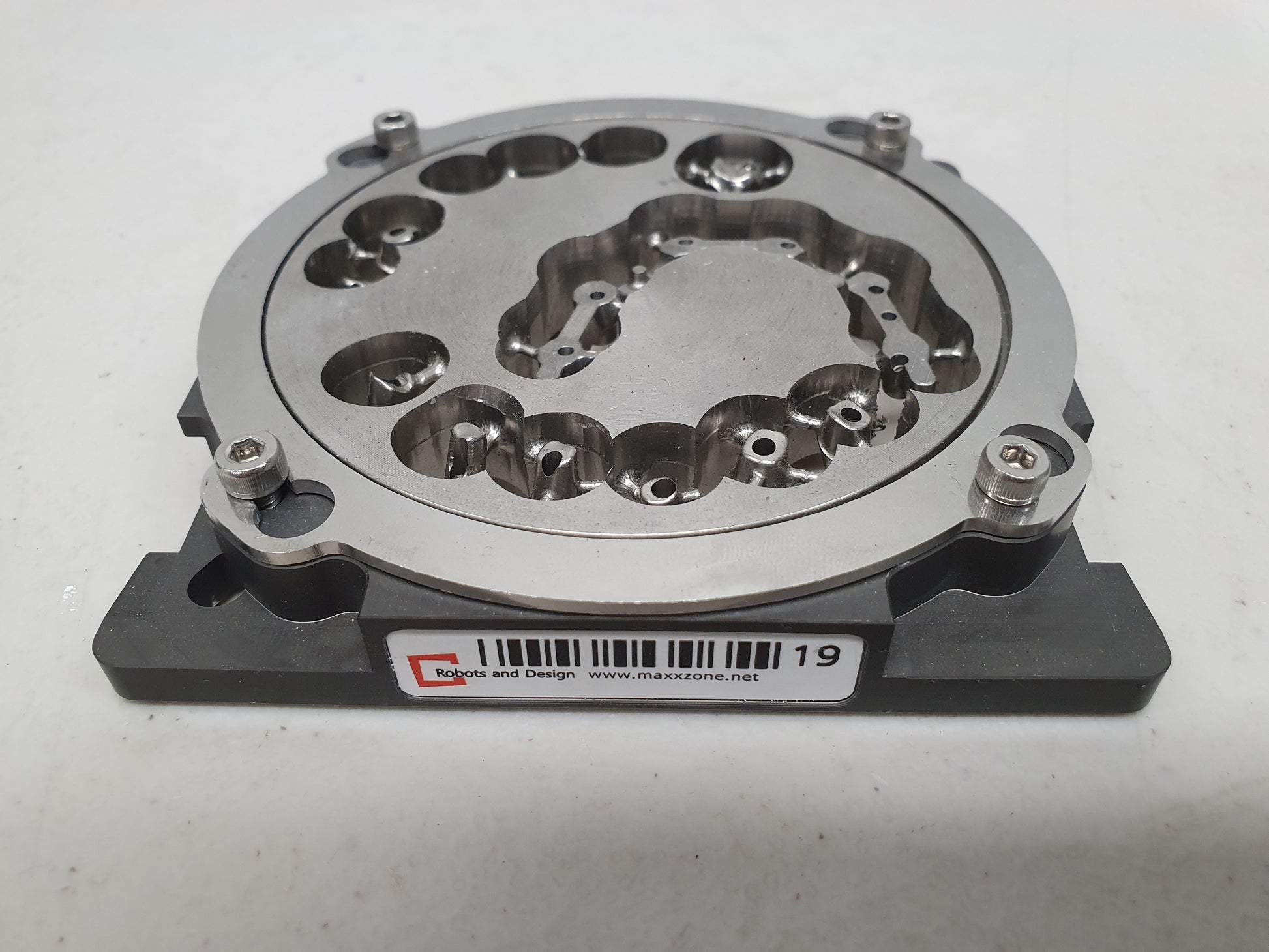

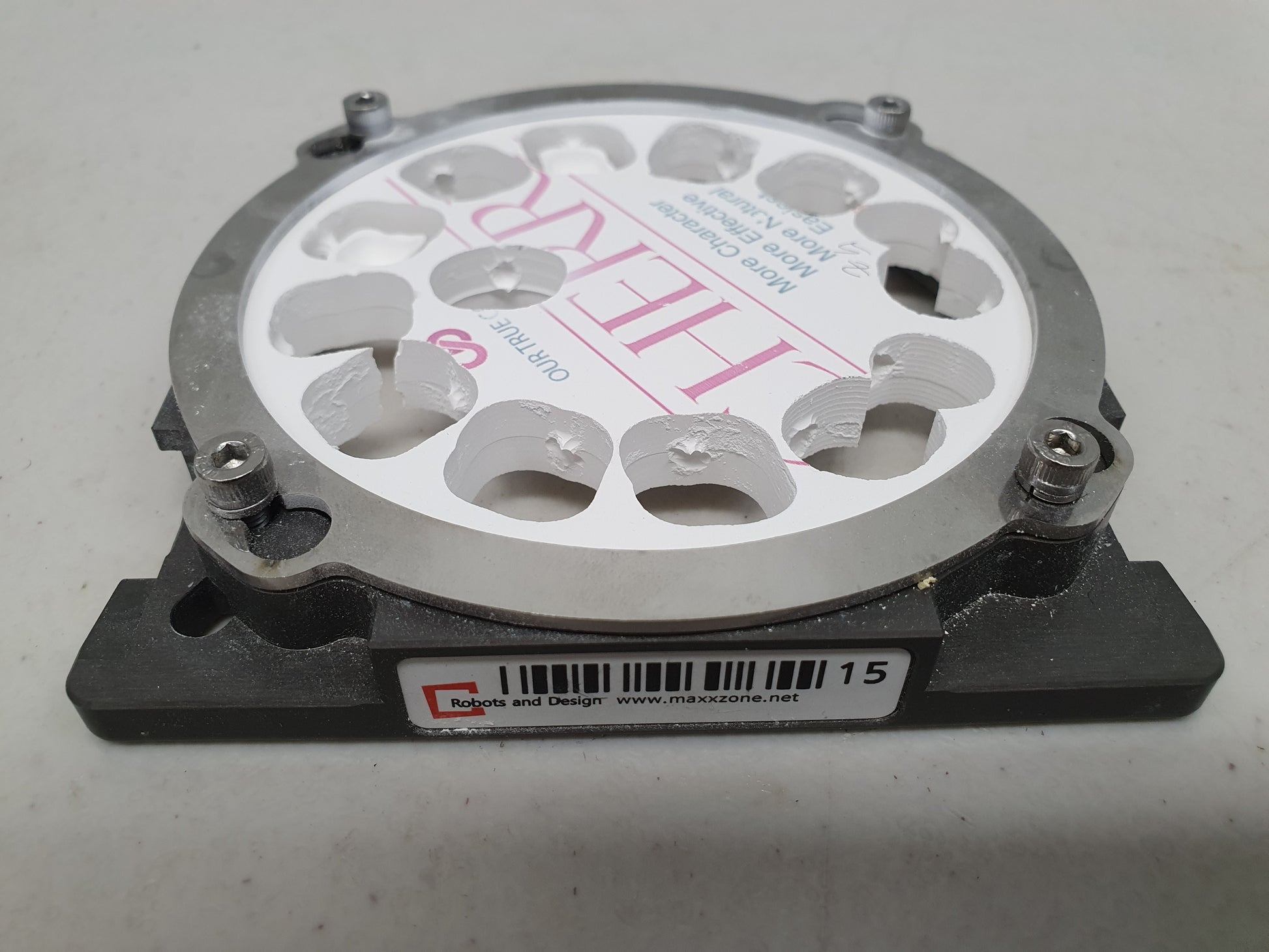

🔩 Fixtures
Disc Type (Ø98 mm)
Pin Type
Multi-Jig Type
Square Type
🌟 Summary
The MAXX-5AW represents the pinnacle of automated dental milling technology. With its auto disc loader, wet & dry all-in-one design, and powerful spindle system, it’s the ultimate solution for large-scale, precision-driven dental production — built for labs that demand performance and efficiency around the clock.
