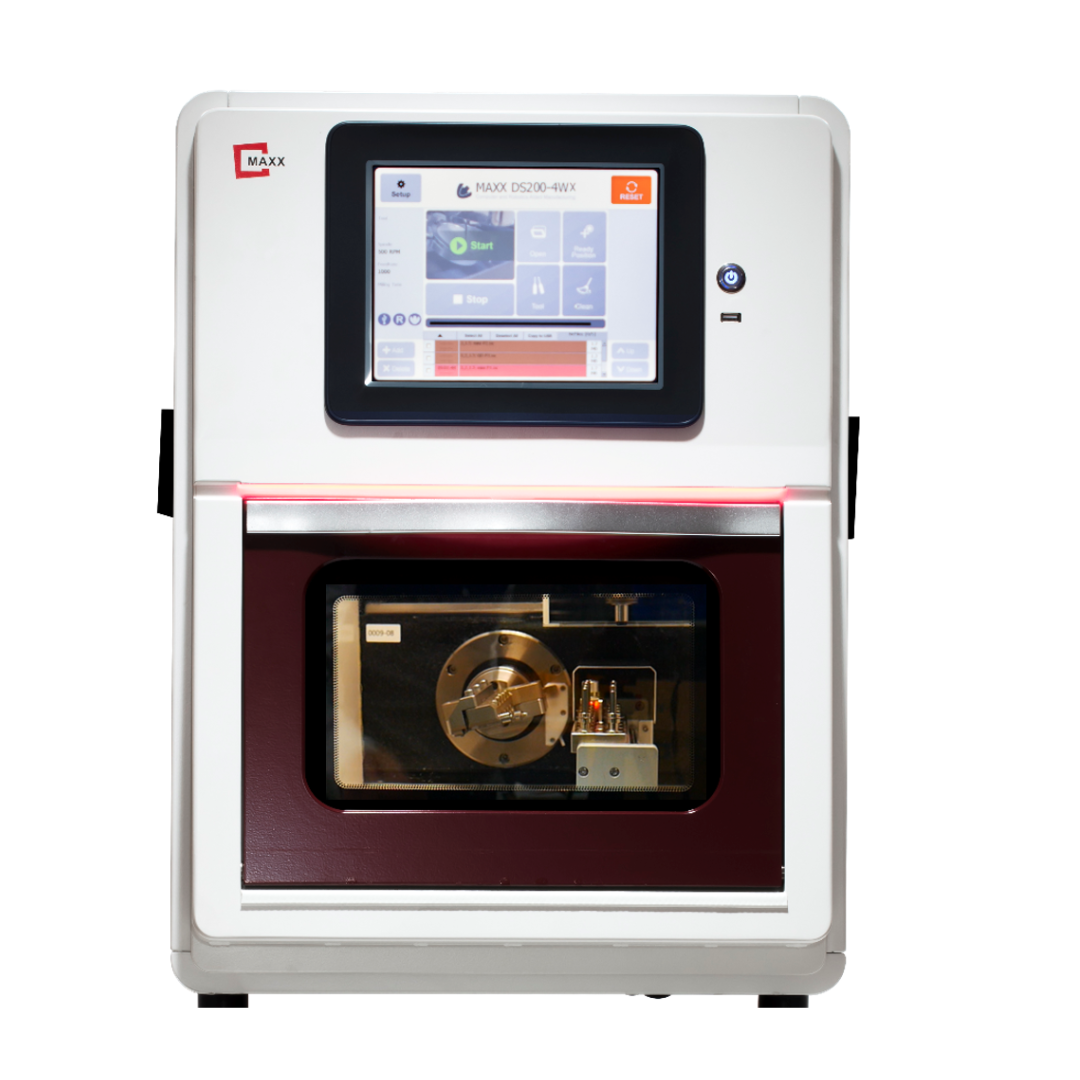

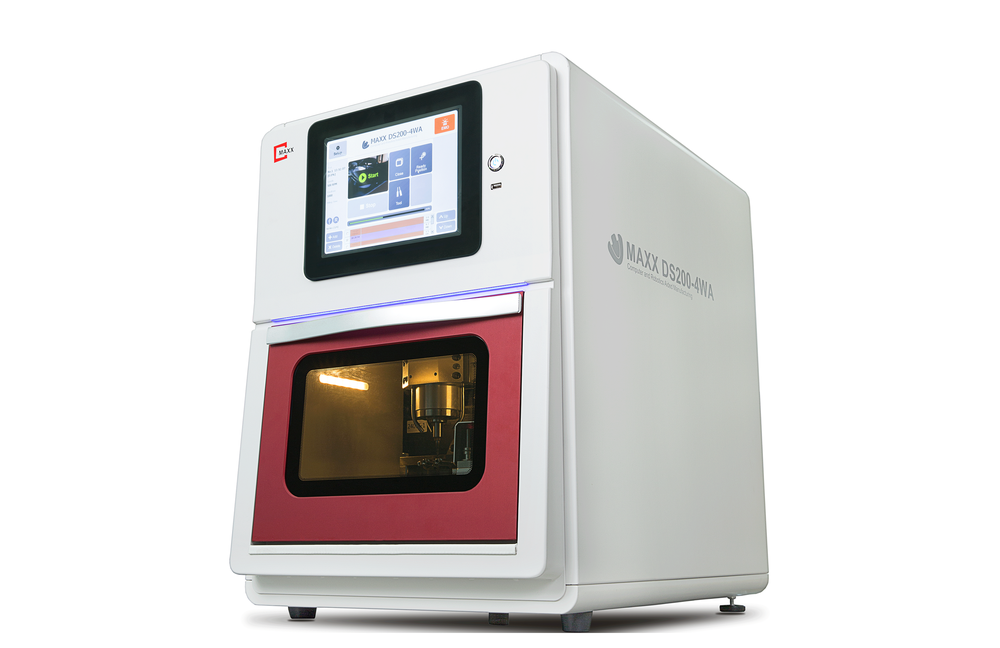

MAXX DS200-4WX – Custom Abutment and Glass Ceramic on One Machine
The MAXX DS200-4WX is a high-performance 4-axis desktop milling machine specialized for pre-milled blanks and glass ceramics. Compact yet powerful, it provides exceptional precision and speed for advanced wet milling applications — ideal for dental labs seeking one-step digital solutions.
⚙️ Specifications
No. of Axis: 4-Axis
Size & Weight: 500W × 725D × 712H mm / Approx. 110 kg
Controller & Motor: Embedded PC (10.1” touch screen), AC Servo Motor
Index Operating Range: A = 0°–180°
Tool System: 6 mm shank diameter, ATC 8 tools
Spindle: High Frequency, S1: 1.4 kW / Max 2.7 kW, 60,000 rpm
Cooling: Wet Milling
Power Supply: AC220V / 6A
Compressed Air: 6.5 bar

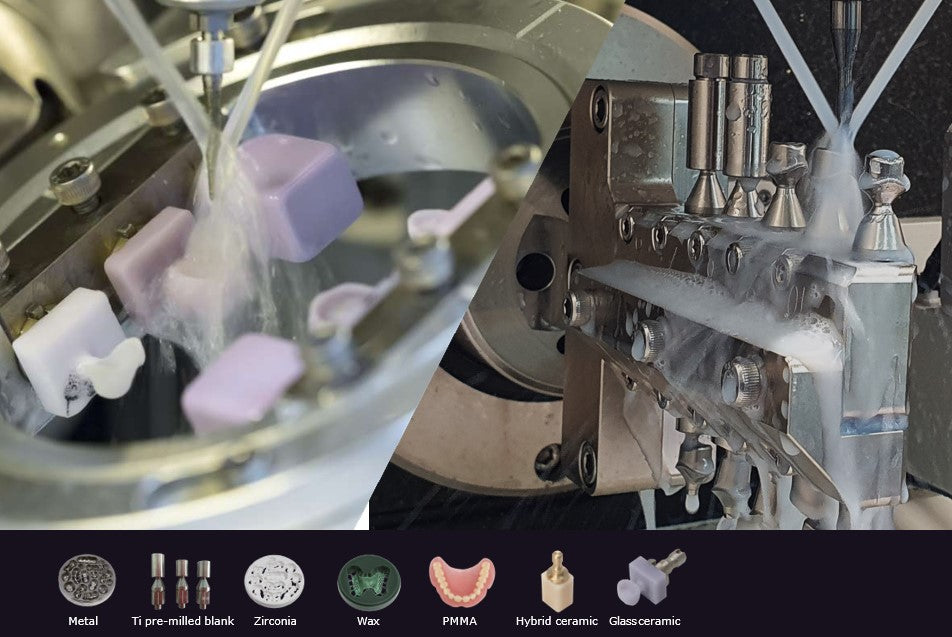

🧱 Compatible Materials

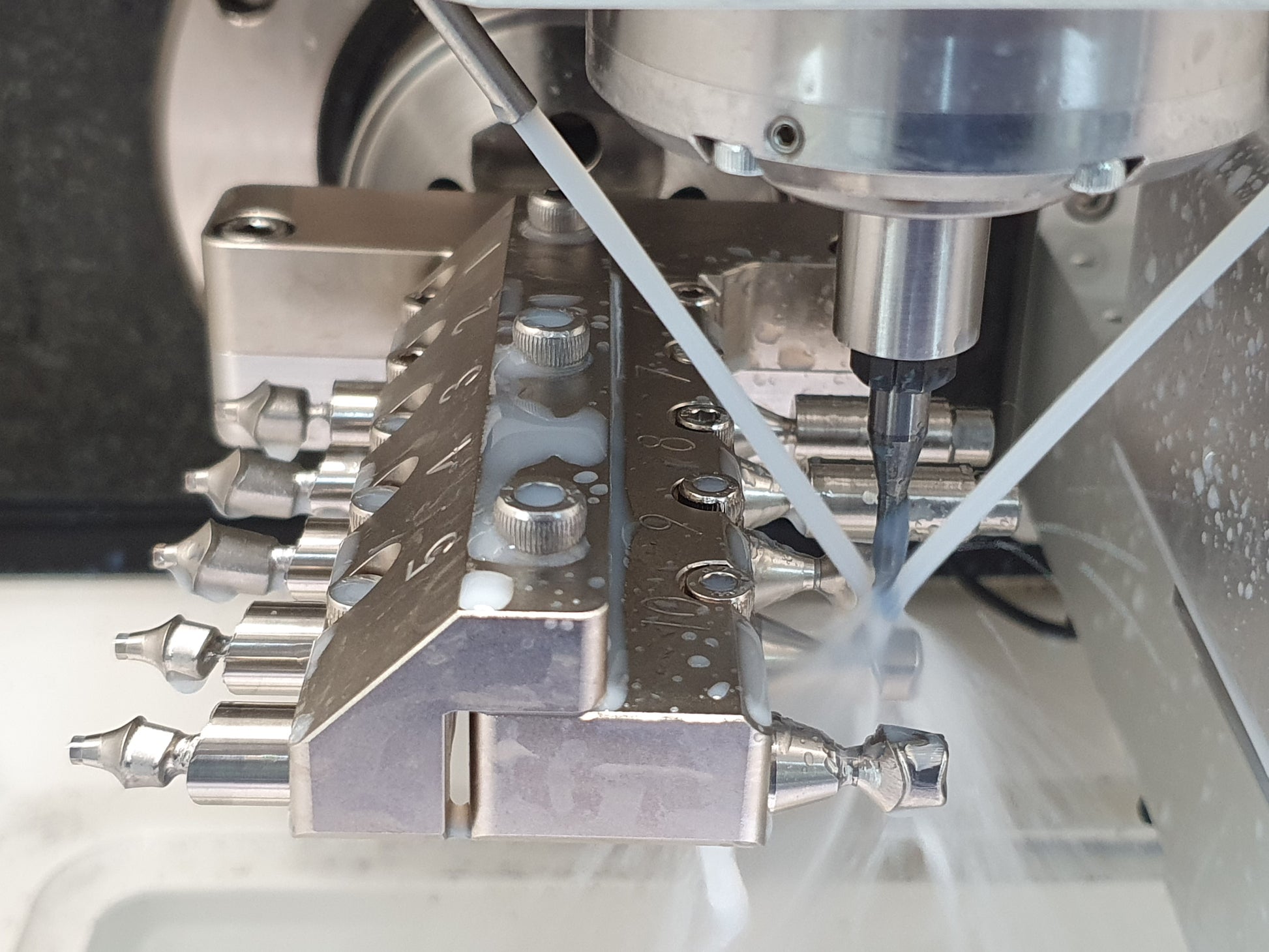

Ti Pre-Milled Blanks
Hybrid Ceramics
Glass Ceramics
🦷 Applications
Custom Abutments
Crowns & Bridges
One-Step Milling Solutions

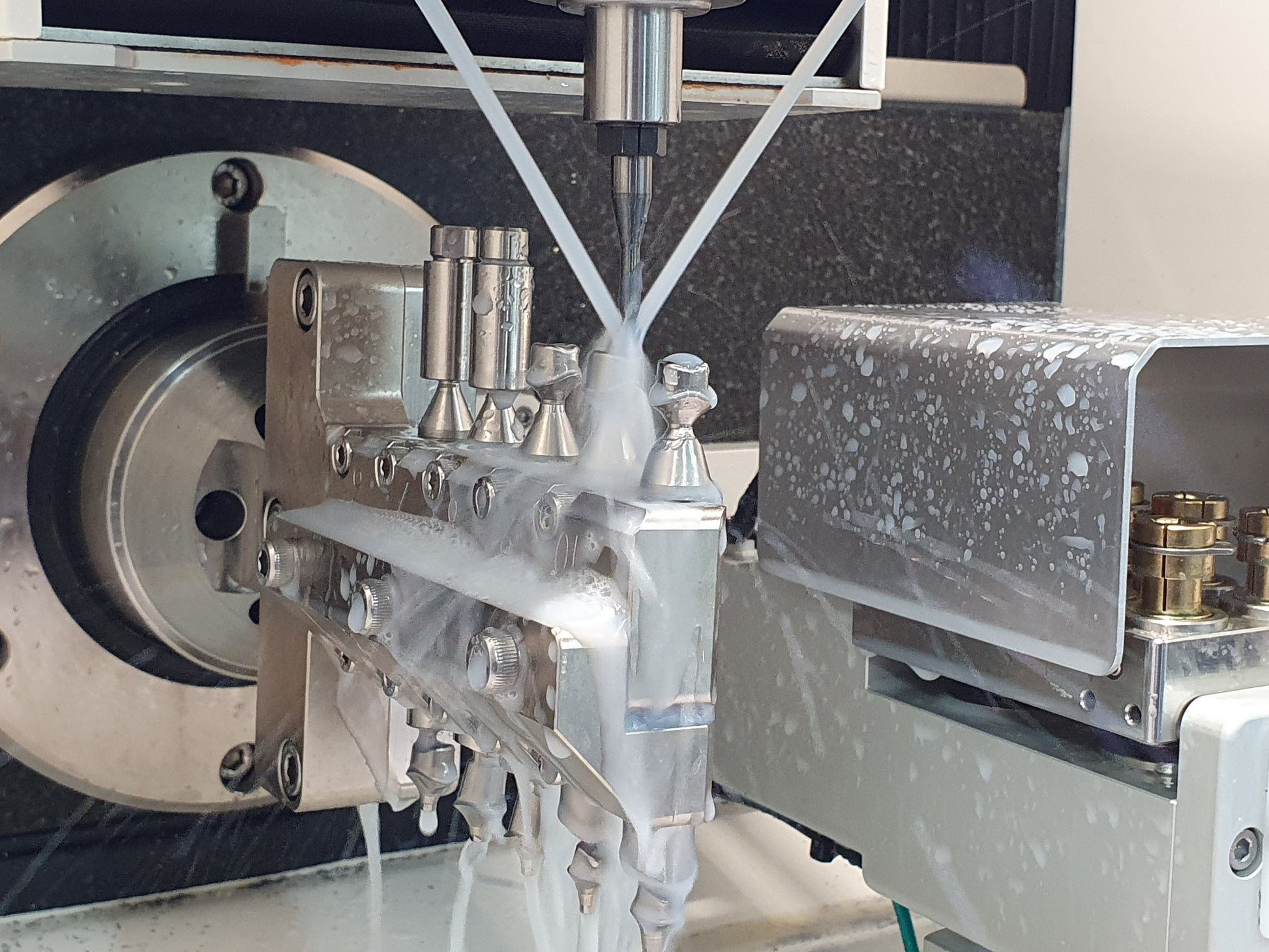

Cuff, Shoulder, and Occlusion Milling
💡 Key Features
One-Step Solution: Operate multiple milling machines with one CAM system, or mill multiple pre-milled bars on a single machine.
Auto Multi-Origin Process: Supports simultaneous multi-bar milling for improved productivity.
High Precision & Speed: Less than 15 minutes per crown with 500W spindle power and up to 60,000 rpm.
Granite Base Frame: Minimizes vibration, heat deformation, and margin chipping for stable and smooth milling.
Auto Calibration & Tool Detection: Automatically calibrates and detects tool breakage for safe, continuous operation.
Smart Software (MAXX LINK): Provides remote service, training, and machine operation — saving time and improving workflow efficiency.
🔩 Fixtures
Disc Type: Ø98 mm (height 10–30 mm)

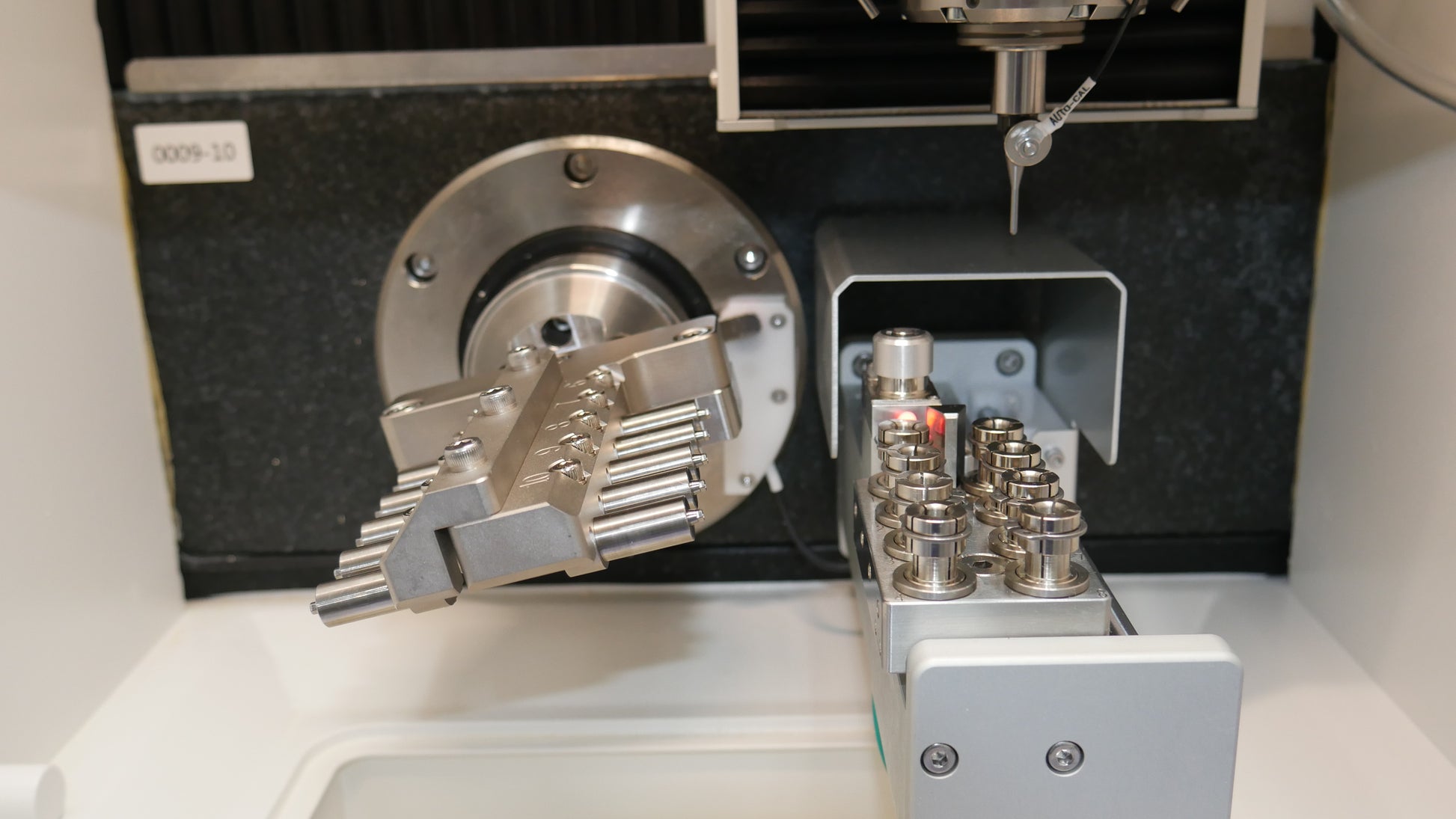

Ti Pre-Milled Blank: 5 blanks
🌟 Summary
The MAXX DS200-4WX delivers efficient, high-quality milling performance for Ti pre-milled blanks, hybrid ceramics, and glass ceramics. Its precision 4-axis wet milling design, coupled with MAXX LINK intelligent control, ensures maximum productivity, accuracy, and reliability for modern dental laboratories.
